Thermal switch

Thermal switch

Thermal switch
Thermal switch
Product no.: 357 919 369 E
In stock
€15.49
prices excluding VAT, shipping costs and import fees
Go to Model Classification / Picture Boards
Go to Product details
Go to Delivery information

Product description:

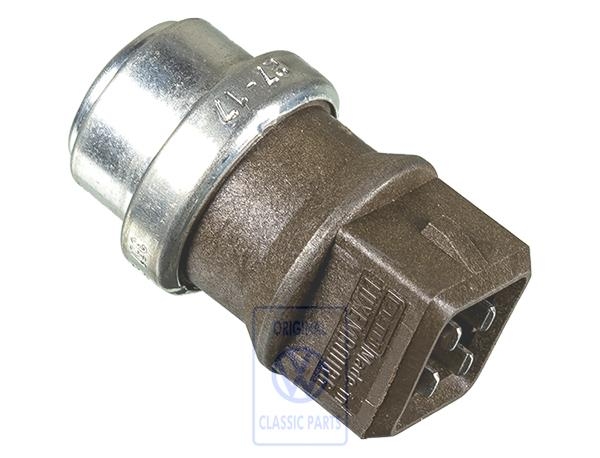

Thermal switch for deactivating air conditioning system or/and radiator fan. For several Volkswagen models.

112 / 119C 20 mm
112 / 108C
4 pin
brown
3 stages

Engine code: ALH, AHF, AHU, ALE, 1Z, 1Y, AAZ, AFN, ALE, RA, SB

Model Classification / Picture Boards:

Please click the arrow right to the model year for more information or to view the picture boards.
Model Model year starting from Model year up to
Bora 1999
2001
Use Comment Model specification
switches and senders on engine
and gearbox
Go to diagram
4-cylinder
Caddy Mk2 1996
2003
Use Comment Model specification
Oil pressure switch
Temperature sensor
Temperature sensor
temperature switch
switch for reversing light
Go to diagram
Diesel eng.+
AHB,1Y,AEY,
1Z,AHU,ALE,
AYQ,ALH
heat exchanger
Coolant hoses
Go to diagram
heater
air condit.
Corrado 1989
1995
Use Comment Model specification
Oil pressure switch
thermal switch
Temperature sensor
switch for reversing light
Go to diagram
6-cylinder
Golf Mk2 1990
1992
Use Comment Model specification
Oil pressure switch
Temperature sensor
Temperature sensor
temperature switch
switch for reversing light
Go to diagram
DIGIFANT:PB
PF,RV
KE-JET/MOTR/
16V:PL,9A
Diesel eng.+
JP,JR,ME,MF,
RA,SB,1V
16V:KR
MONOMOTRONIC
MONOJET:RP
DIGIJET:NZ
DIGIFANT/
G60:PG
carburetor
engine:
EZ,ABN,GU,HZ
PN,RF,RH,2G
Golf Mk3 1992
1994
Use Comment Model specification
Oil pressure switch
thermal switch
Temperature sensor
switch for reversing light
Go to diagram
AAA
Oil pressure switch
Oil temperature sender
Temperature sensor
Temperature sensor
temperature switch
switch for reversing light
Go to diagram
ABF,1Y,AAZ,
1Z
Golf Mk3 1995
1995
Use Comment Model specification
Oil pressure switch
Oil temperature sender
Temperature sensor
Temperature sensor
temperature switch
switch for reversing light
Go to diagram
ABF,1Y,AAZ,
1Z,AEK
Oil pressure switch
thermal switch
Temperature sensor
switch for reversing light
Go to diagram
AAA
Golf Mk3 1996
1996
Use Comment Model specification
Oil pressure switch
Oil temperature sender
Temperature sensor
Temperature sensor
temperature switch
switch for reversing light
Go to diagram
ABF,1Y,AAZ,
1Z,AFT,AEY,
AFN,AEK
Oil pressure switch
thermal switch
Temperature sensor
switch for reversing light
Go to diagram
AAA
Golf Mk3 1997
1998
Use Comment Model specification
Oil pressure switch
Oil temperature sender
Temperature sensor
Temperature sensor
temperature switch
switch for reversing light
Go to diagram
ABF,1Y,AAZ,
1Z,AFT,AEY,
AFN,AHU,AKS,
ALE
Oil pressure switch
thermal switch
Temperature sensor
switch for reversing light
Go to diagram
AAA
Golf Mk3 Cabriolet 1994
1998
Use Comment Model specification
Oil pressure switch
Oil temperature sender
Temperature sensor
Temperature sensor
temperature switch
switch for reversing light
Go to diagram
AEK,1Z,AFT,
AHU,AFN,AKS,
ALE
Golf Mk3 Variant 1992
1994
Use Comment Model specification
Oil pressure switch
Oil temperature sender
Temperature sensor
Temperature sensor
temperature switch
switch for reversing light
Go to diagram
1Y,AAZ,1Z
Oil pressure switch
thermal switch
Temperature sensor
switch for reversing light
Go to diagram
AAA
Golf Mk3 Variant 1995
1995
Use Comment Model specification
Oil pressure switch
Oil temperature sender
Temperature sensor
Temperature sensor
temperature switch
switch for reversing light
Go to diagram
1Y,AAZ,1Z,
AEK
Oil pressure switch
thermal switch
Temperature sensor
switch for reversing light
Go to diagram
AAA
Golf Mk3 Variant 1996
1996
Use Comment Model specification
Oil pressure switch
Oil temperature sender
Temperature sensor
Temperature sensor
temperature switch
switch for reversing light
Go to diagram
1Y,AAZ,1Z,
AFT,AEY,AFN,
AEK
Oil pressure switch
thermal switch
Temperature sensor
switch for reversing light
Go to diagram
AAA
Golf Mk3 Variant 1997
1999
Use Comment Model specification
Oil pressure switch
Oil temperature sender
Temperature sensor
Temperature sensor
temperature switch
switch for reversing light
Go to diagram
1Y,AAZ,1Z,
AFT,AEY,AFN,
AHU,AKS,ALE
AGG
Oil pressure switch
thermal switch
Temperature sensor
switch for reversing light
Go to diagram
AAA
Golf Mk3 syncro 1993
1998
Use Comment Model specification
Oil pressure switch
Oil temperature sender
Temperature sensor
Temperature sensor
temperature switch
switch for reversing light
Go to diagram
1Z,AHU,ALE
Oil pressure switch
thermal switch
Temperature sensor
switch for reversing light
Go to diagram
ABV
Golf Mk4 1998
2001
Use Comment Model specification
switches and senders on engine
and gearbox
Go to diagram
4-cylinder
Golf Mk4 Cabriolet 1999
2002
Use Comment Model specification
Oil pressure switch
Oil temperature sender
Temperature sensor
Temperature sensor
temperature switch
switch for reversing light
Go to diagram
AFT,AKS,AHU,
ALE,AFN,AVG
Jetta Mk2 1990
1992
Use Comment Model specification
Oil pressure switch
Temperature sensor
Temperature sensor
temperature switch
switch for reversing light
Go to diagram
DIGIFANT:PB
PF,RV
KE-JET/MOTR/
16V:PL,9A
Diesel eng.+
JP,JR,ME,MF,
RA,SB,1V
16V:KR
MONOMOTRONIC
MONOJET:RP
DIGIJET:NZ
DIGIFANT/
G60:PG
carburetor
engine:
EZ,ABN,GU,HZ
PN,RF,RH,2G
New Beetle 1999
2001
Use Comment Model specification
switches and senders on engine
and gearbox
Go to diagram
4-cylinder
Parati (Brazil) 1996
2002
Use Comment Model specification
Coolant cooling system
Cooler for coolant
Reservoir
>>31.05.1999
Go to diagram
for engine:
DIESEL
Coolant cooling system
Cooler for coolant
Reservoir
D - 01.06.1999>>
Go to diagram
for engine:
DIESEL
Passat B3 1988
1991
Use Comment Model specification
Oil pressure switch
thermal switch
Temperature sensor
switch for reversing light
Go to diagram
4-cylinder
Oil pressure switch
thermal switch
Temperature sensor
switch for reversing light
Go to diagram
6-cylinder/
DIGIFANT:AAA
Passat B3 1992
1993
Use Comment Model specification
Oil pressure switch
thermal switch
Temperature sensor
switch for reversing light
Go to diagram
6-cylinder/
DIGIFANT:AAA
Oil pressure switch
thermal switch
Temperature sensor
switch for reversing light
Go to diagram
AAM,ABS,EZ,
ABN,1Y,SB,
AAZ,2E,KR,9A
Passat B4 1994
1997
Use Comment Model specification
External temperature sensor
switches and senders on engine
and gearbox
Go to diagram
ABF,1Y,AAZ,
1Z,AEK,AFN,
AHU,AFT
switches and senders on engine
and gearbox
Go to diagram
AAA
Passat B4 syncro 1994
1997
Use Comment Model specification
switches and senders on engine
and gearbox
Go to diagram
ABV
Polo Classic 1996
1996
Use Comment Model specification
Oil pressure switch
Temperature sensor
Temperature sensor
temperature switch
switch for reversing light
Go to diagram
Diesel eng.+
AEY,1Y
Polo Classic 1997
2000
Use Comment Model specification
Oil pressure switch
Temperature sensor
Temperature sensor
temperature switch
switch for reversing light
Go to diagram
Diesel eng.+
AKW,1Y,AEY,
AHU,ALE,AFN
Polo Variant 1997
2000
Use Comment Model specification
Oil pressure switch
Temperature sensor
Temperature sensor
temperature switch
switch for reversing light
Go to diagram
Diesel eng.+
AKW,1Y,AEY,
AHU,ALE,AFN
Sharan Mk1 1996
2000
Use Comment Model specification
Coolant cooling system
Go to diagram
1.8ltr.
4-cylinder+
AJH
switches and senders on engine
and gearbox
Go to diagram
1Z,AFN,AHU,
AJH,ANU,AVG
Coolant cooling system
Coolant hoses
heater
see illustration:
Go to diagram
1.9ltr.
819-022
4-cylinder
Diesel eng.+
ANU
Coolant cooling system
Go to diagram
2.0 Ltr.
1.9ltr.
4-cylinder
Petrol eng.+
ADY
4-cylinder
Diesel eng.+
1Z,AHU,AFN,
AVG
switches and senders on engine
and gearbox
Go to diagram
6-cylinder
T4 1991
1994
Use Comment Model specification
switches and senders on engine
and gearbox
Go to diagram
4-cylinder
Vento 1992
1994
Use Comment Model specification
Oil pressure switch
Oil temperature sender
Temperature sensor
Temperature sensor
temperature switch
switch for reversing light
Go to diagram
1Y,AAZ,1Z
Oil pressure switch
thermal switch
Temperature sensor
switch for reversing light
Go to diagram
AAA
Vento 1995
1995
Use Comment Model specification
Oil pressure switch
Oil temperature sender
Temperature sensor
Temperature sensor
temperature switch
switch for reversing light
Go to diagram
1Y,AAZ,1Z,
AEK
Oil pressure switch
thermal switch
Temperature sensor
switch for reversing light
Go to diagram
AAA
Vento 1996
1996
Use Comment Model specification
Oil pressure switch
Oil temperature sender
Temperature sensor
Temperature sensor
temperature switch
switch for reversing light
Go to diagram
1Y,AAZ,1Z,
AFT,AEY,AFN,
AEK
Oil pressure switch
thermal switch
Temperature sensor
switch for reversing light
Go to diagram
AAA
Vento 1997
1999
Use Comment Model specification
Oil pressure switch
Oil temperature sender
Temperature sensor
Temperature sensor
temperature switch
switch for reversing light
Go to diagram
1Y,AAZ,1Z,
AFT,AEY,AFN,
AHU,AKS,ALE
AGG
Oil pressure switch
thermal switch
Temperature sensor
switch for reversing light
Go to diagram
AAA

Product details:
Product quality
Length 42 mm
Width 30 mm
Height 30 mm
Spare part number 357919369E
Weight 0.025 KG
